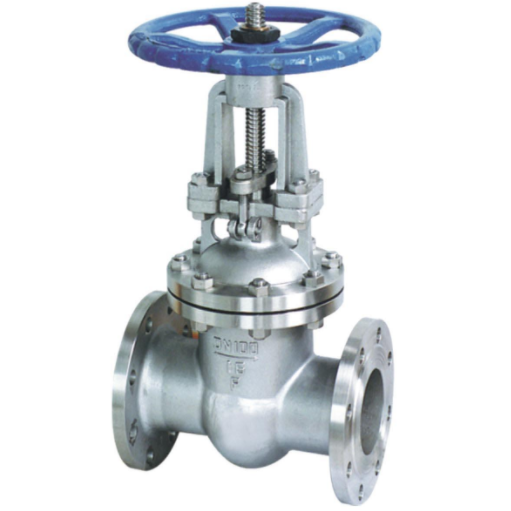

Standard Pressure Seal DN50 Forged Gate Valve For Oil Gas Industry

Brand Name : junxi

Place of Origin : hebei

MOQ : Can discuss

Price : Can discuss

Payment Terms : L/C, T/T

Supply Ability : 1000

Delivery Time : 15~25

media : Water,Oil,Gas,Acid

Power : Manual,Handwheel Operated,electric,Gear Operated

Structure : Gate Valve

Port Size : Standard, Full, Reduced

Material : Stainless Steel,Forged

Pressure : Medium Pressure,Low Pressure,High Pressure

Contact Now

Design Feature:

  1. Bolt bonnet .
  2. Casting or forged body.
  3. Full port or reduced port design.
  4. Back seal design.
  5. Stem is one-piece wrought material.
  6. Flexible wedge gate , Solid wedge gate.
  7. Outside Screw and Yoke .
  8. Rising stem
  9. welding Seat.
  10. Special request : Locking device ,Position indicator.Limit Switch.

Product Range :

  1. Size: NPS 2”~ 48” , DN 50-1200
  2. Pressure Rating: Class 150 -2500 LB , PN 10~400
  3. Design standard:API 600 ,ASME B16.34,ISO 10432,EN1984.
  4. Face To Face Dimension: ASME B16.10,EN 558-1,EN 12982
  5. Connecting Dimensions : ASME B16.5 , ASME B16.47, ASM B 16.25 , EN 1092-1 , EN 12627.
  6. End Connection : Flange, BW .
  7. Body Materials : Carbon steel , Alloy Steel,Duplex/ Stainless Steel , Special Alloy .

Technical sepcification

Design reference API ASME
Design standard API6D ASME B16.34
Flanged ends Thread ends Socket welded ends
ASME B16.10 ASME B16.11 ASME 1.20.1
Flanged ends ASME B16.5
Test & Inspection API598

Standard Pressure Seal DN50 Forged Gate Valve For Oil Gas Industry
