Applications

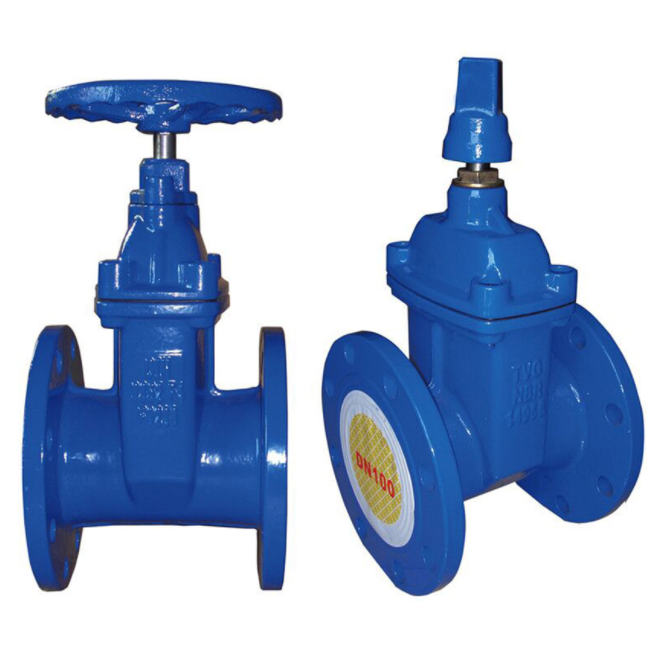

This valve widely applied in the liquid pipes for opening or closing fixing in such water, sewage disposal, electric power, energetics pipe , chemical, shipping, energy sources etc.
Applicable Standards
a.American Standard
Design to ANSI/AWWA C509
Face to face dimension to ASME B16.10-2000(ISO 3 series)
Flange and drilling To SME/ANSI B16.42-1998
b.British Standard
Design to BS5163,BS5150
Face to face dimension to BS5163(ISO 3series,ISO19 series)
Flange and drilling To BS4504 part1(EN1092)
c.Germany Standard
Design to DIN3352
Face to face dimension to DIN3202(F4:ISO 14 series;F5: ISO 15 series)
Flange and drilling to BS EN1092
| Valve construction: | Outside screw&Yoke,Bolted Bonnet,Rising/Non-rising stem |
| Connection: | Thread,Flange,BW.SW |
| Nominal PRESS: | PN10,PN16,PN25,PN40,PN64.Class150 Class300 Class600 Class900 Class1500 Class2500 |
| Valve Body Material: | A105 A105N F304 F316 F304L F316L F321Ti F316Ti F5 F11 F22 LF2 LF3 |
| Seal Material: | A105,SS304,SS316,Stellited Facing.Hard facing. |
| Medium TEMP: | -56ºC-+580ºC |
| Working Medium: | air, steam, water, gases, oil, dust, corrosive medium, etc. |
| Driver Connection: | ISO 5211 or customerized made |
| Valve Inspection: | API598,ISO/DIN 5208-1987 |
| Standards: | GB,DIN,ANSI,JIS |
| Application Field: | Water,Oil Gas etc... |
Features:
(1), Full size or reduced size design
(2), Three bonnet types: bolted, welded, self-sealing
(3), sealing surface is not easy to wear, abrasion, good sealing performance, long life
(4), compact structure, good opening and closing, small height, convenient maintenance.
(5), Inverted sealing of the body
(6), Simple in shape, short face-to-face length, good technic in producing, and widely applied
